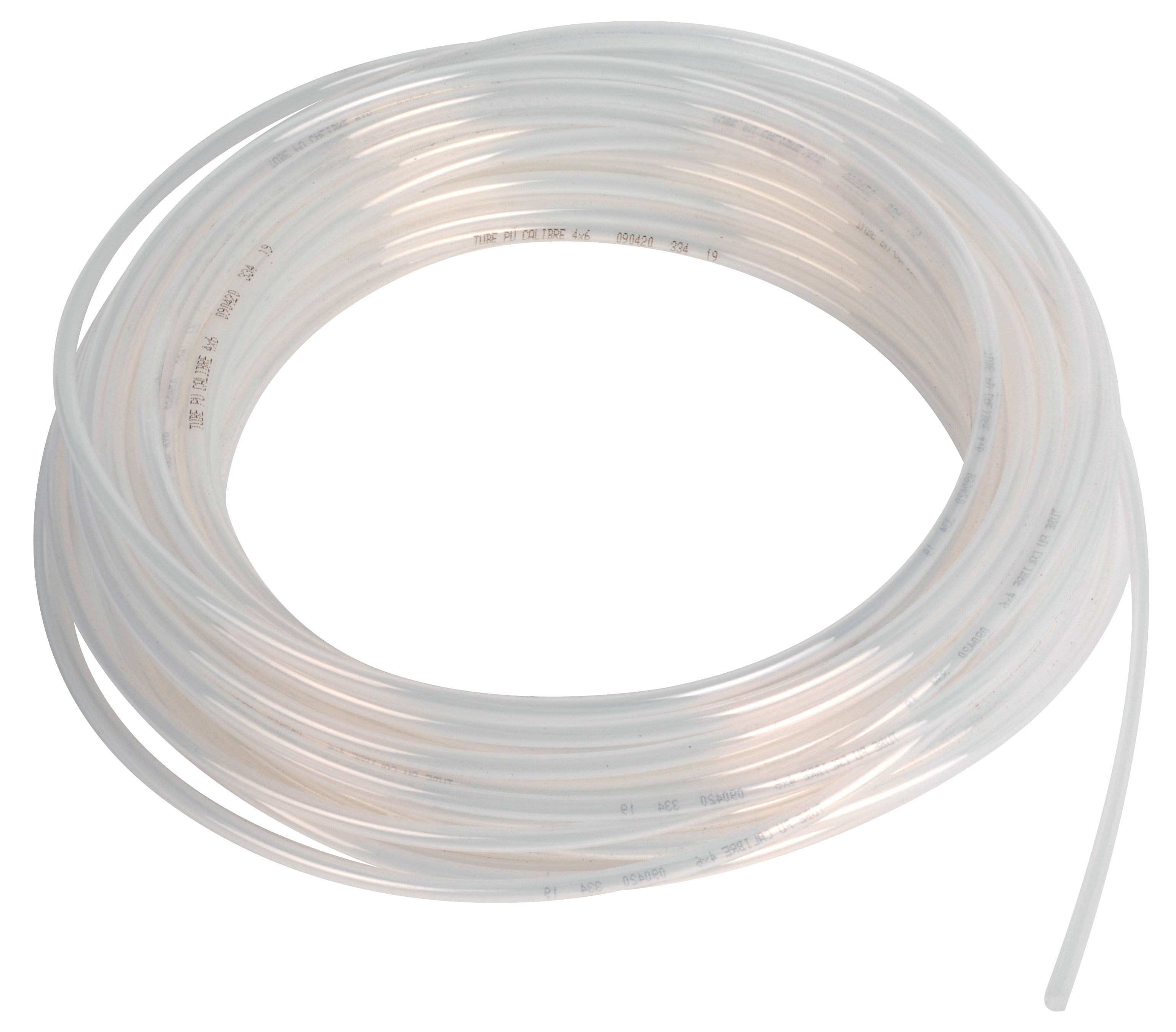

CBM Roll 25m PU tube 6x4

CBM polyurethane tubing in 25 m rolls delivers reliable fluid conveyance with a 4 mm inner diameter and 30 bar pressure rating. Operating range of -15°C to +80°C with ±0.1 mm tolerance suits pneumatic and hydraulic…

SKU 3G-CBM-05509

Also listed as: RAC 22050 · RAC-22050

Brand

CBM

Item

Roll 25m PU tube 6x4

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

tolerance mm

+/- 0.1

inner diameter mm

4

max temperature c

+80

min temperature c

-15

outer diameter mm

6

weight per meter g

19

pressure rating bar

30

Datasheet Content

+80
TUBE PU CALIBRÉ POLYURETHANE                                                                                                                                        30 24
                                                                                                                                                                        bar
                                                                                                                                                                                      - 15
                                                                                                                                                                                              °C




                                                                                                                       1


                                                                                                                                  1   Polyuréthane bleu, rouge, noir ou translucide




                                                                           TUBE CALIBRÉ DE GRANDE PRÉCISION EN POLYURÉTHANE (DURETÉ 98 SHA).
                                                                           Conception mono couche en polyuréthane souple translucide ou coloré. Intérieur et extérieur lisses.


APPLICATIONS                                                               SECTEURS D’ACTIVITÉ
Commandes pneumatiques, transport de fluides et                            Automatismes sur tous types de machines : concerne
liquides sous pression : fuel et lubrifiants, certaines                    un grand nombre d’industries utilisant des machines
laques et quelques solvants.                                               d’assemblage, des lignes d’emballage, laboratoires


   MARQUAGE                                                                            TUBE PU CALIBRE Ø int x Ø ext [N° lot]

AVANTAGES                                                                  RACCORDS                                              TENUE CHIMIQUE
Le TUBE PU CALIBRÉ est remarquable par sa flexibilité                      Raccords auto-bloquants. Raccords à tulipe et à       Le TUBE PU CALIBRÉ est formellement contre-
et sa légèreté. Notre processus de fabrication                             coiffe.                                               indiqué pour le passage d’acides, de bases et de
par calibration lui assure une grande précision                                                                                  produits aqueux à une température supérieure à
dimensionnelle.                                                                                                                  40°C.
Il a une bonne inertie chimique générale, en
particulier avec les huiles et les hydrocarbures. Son
faible coefficient de frottement est assuré par une
texture très lisse des parois extérieure et intérieure.
Les coloris variés permettent le repérage des circuits
et sa présentation en boîte dévidoir carton facilite le
rangement.

 Couronnes en boîte carton (ou en sachet *)


        mm        mm             mm        mm             mm         g/m         bar           bar        mm

  2.5        4         +/- 0,1        0.75      +/- 0,1        9.2          30            10         12
    4        6         +/- 0,1         1        +/- 0,12       19           30            10         15
  5.5        8         +/- 0,1        1.25      +/- 0,12       32           27             9         20
    6        8         +/- 0,1         1        +/- 0,12       26.8         27             9         22
  7.5        10        +/- 0,15       1.25      +/- 0,15       41.3         24             8         30
    8        12        +/- 0,15        2        +/- 0,15       76.4         27             9         35
 Couronnes en boîte carton


        mm        mm             mm        mm             mm         g/m         bar           bar        mm

    4        6         +/- 0,1         1        +/- 0,12       19           30            10         15
  5.5        8         +/- 0,1        1.25      +/- 0,12       32           27             9         20
    6        8         +/- 0,1         1        +/- 0,12       26.8         27             9         22
  7.5        10        +/- 0,15       1.25      +/- 0,15       41.3         24             8         30


 Touret           (1) ø 320 mm x l. 270 mm                     (2) ø 450 mm x l. 350 mm

                                                                                                                L                                    Attention :
        mm        mm             mm        mm             mm         g/m         bar           bar        mm
                                                                                                                                                     sur le touret, le tuyau peut comporter
  5.5        8         +/- 0,1        1.25      +/- 0,12       32           27             9         20        600                                   2 coupes, soit 3 longueurs raccordées.

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy CBM RAC22050 PU tubing in the Philippines?

3G Electric Philippines sources CBM polyurethane tubing with delivery to Manila and Quezon City. We handle Bureau of Customs documentation and provide PHP invoicing. Lead time on request—contact us for availability and quote.

What is the pressure rating and temperature range of this CBM tubing?

The CBM RAC22050 tube is rated for 30 bar maximum pressure and operates between -15°C and +80°C. Tolerance is ±0.1 mm, making it suitable for pneumatic and hydraulic applications requiring precision.

What are the dimensions and weight of the CBM 6x4 tube roll?

Outer diameter is 6 mm, inner diameter is 4 mm, with 19 g per meter. The 25 m roll delivers compact, flexible fluid conveyance for confined spaces in packaging and food processing equipment.
