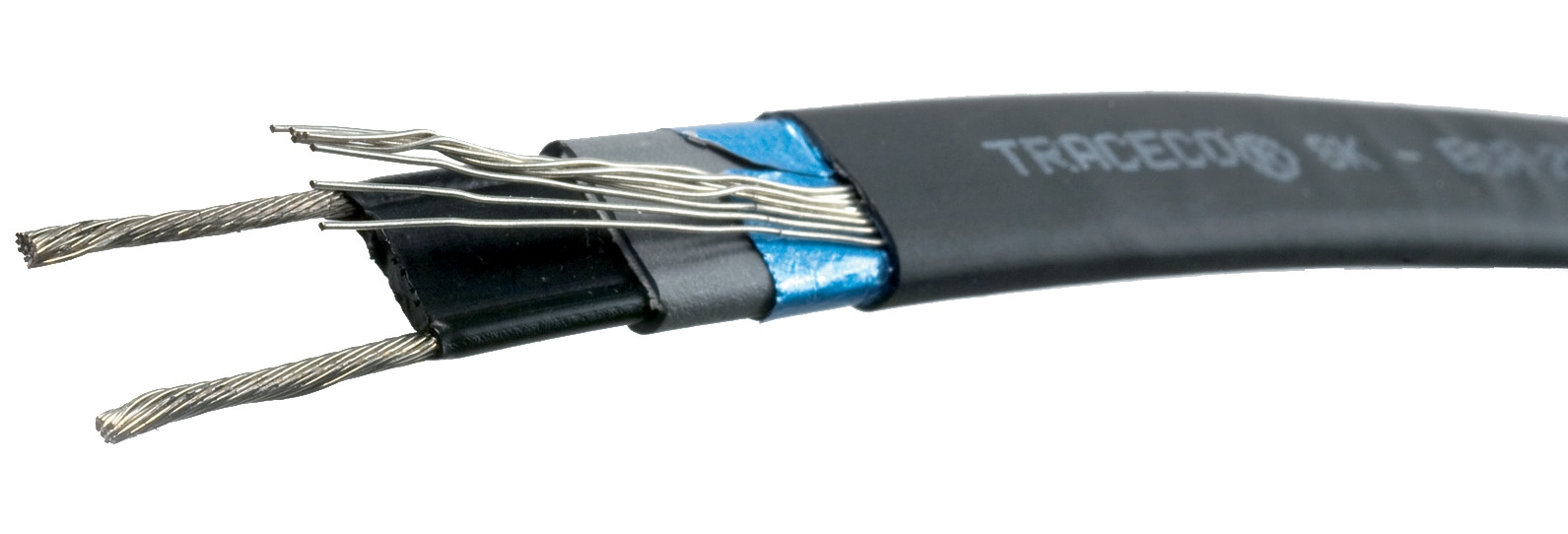

CBM Self-regulating heating cable K65A100 (100m spool)

HEATING CABLES K55A-K65A SELF-ADJUSTING HEATING CABLES TO MAINTAIN THE TEMPERATURE OF FLUIDS - HIGH TEMPERATURE SYSTEMS ■ Suitable for maintaining the temperature of liquids in the pipes, for example, domestic hot water ■ It can maintain the pipes at a temperature above 70°C, thereby avoiding the formation of Legionellosis bacteria ■ Optimisation of energy consumption thanks to the self- adjusting feature of the cable CODE Cable Power Maximum Maximum Minimum Maximum length length room room installation of the heating circuit temperature temperature room from the supply point powered not powered temperature K55A100 100 m 9 W/m 55 °C 80 °C 100 °C -20 °C 130 m K65A100 100 m 13 W/m 65 °C 80 °C 100 °C -20 °C 110 m HOMOLOGATION AND STANDARDS OPERATION ■ CSTB ■ The heat emission varies automatically without control thermostats being used. They are based on the property of some polymers, with which the conductors are insulated, to vary their resistance according to the temperature which they are subjected to; ■ Using a thermostat (L03BI1A) allows periodic heating of the system to be guaranteed or to maintain the system temperature constant. 1 K55A-K65A - SELF-ADJUSTING HEATING CABLES TO MAINTAIN THE TEMPERATURE OF FLUIDS HIGH TEMPERATURE SYSTEMS INSTALLATION ■ The heating cable can be secured linearly according to the diameter of the pipe; ■ The cable can be cut to the desired length directly during installation; ■ Minimum bending radius: 27 mm; ■ The power of a metre of cable varies with the room temperature; ■ The total power depends on the length of the heating cable. The heating core is active along the entire length of the cable, therefore, a cold tail end must be created so as to have a section with cold terminals (using the KIT2A); ■ Secure the cable to the pipe with the relevant fixing Ø PIPE INSULATION THICKNESS tape K50 for steel pipes or K50AL for plastic pipes; mm inches mm ■ It is advisable to apply an insulating coating over the heating cable for an effective system. 10 1/2 19 20 3/4 19 25 1 19 32 1/4 25 40 1 1/2 30 50 2 40 60 2 1/5 50 The table shows the insulation thickness that is required to ensure the temperature in stainless steel and galvanised steel pipes is maintained with a minimum room temperature of +18°C and a thermal conductivity coefficient of 0.035 W/m. ELECTRICAL FEATURES Power supply 230V-50Hz Power delivered ■ K55A100 45 22.5 W/m at 0°C 40 9 W/m at 55°C 35 ■ K65A100 30 31.5 W/m at 0°C 25 K65A 13 W/m at 65°C 20 15 K55A 10 Power W/M 5 0 0 20 40 60 80 100 Pipe temperature °C 2  K55A-K65A - SELF-ADJUSTING HEATING CABLES TO MAINTAIN THE TEMPERATURE OF FLUIDS HIGH TEMPERATURE SYSTEMS CALIBRATION OF THE PROTECTION CIRCUIT CODE ROOM MAXIMUM CABLE LENGTH TEMPERATURE 16A 20A 32A 20 130 - - K55A100 55 130 - - 20 110 - - K65A100 55 110 - - GENERAL FEATURES Cable composition ■ Nickel-plated copper conductors of 1.25 mm² cross-section ■ Self-adjusting conductive core ■ Polyolefin insulating sheath ■ Braided copper sheath ■ Outer sheath in modified polyolefin Reel length K55A100 100 m K65A100 100 m Maximum room temperature powered 80 °C Maximum room temperature not powered 100 °C Minimum installation room temperature -20 °C Minimum storage room temperature -20 ÷ -25°C 3 K55A-K65A - SELF-ADJUSTING HEATING CABLES TO MAINTAIN THE TEMPERATURE OF FLUIDS HIGH TEMPERATURE SYSTEMS ACCESSORIES KBE3A JUNCTION BOX IN INSULATING MATERIAL ■ Protection rating IP54 with 5 4mm² terminals. ■ 7 PG16 threaded holes closed by a breakable diaphragm. ■ Maximum temperature withstood is 80°C. KSUPP-A SUPPORT FOOT FOR THE KBE3A JUNCTION BOX ■ It allows the cable to pass through the protective coating of the pipe and to enter directly into the junction box. ■ It consists of a Ø 22 L 80 mm pipe with a welded 15x15x60 mm bracket and two clamps. ■ The pipe is in cadmium-plated steel with a Pg16 thread. K50 FIBERGLASS FIXING TAPE FOR METAL PIPES ■ It does not shrink and preserves its qualities over time. ■ Suitable for temperatures between -30 and + 150°C. ■ Roll length 55 m, width 19 mm, recommended fastening range 30 cm. K50AL FIXING TAPE FOR PLASTIC PIPES ■ It reflects the heat as it is coated with an aluminium film. ■ Suitable for temperatures between -20 and + 130°C. ■ Roll length 50 m, width 50 mm. KIT2A KIT TO SEAL TERMINALS FOR SELF-ADJUSTING CABLES (FOR 1 CABLE) ■ To insulate the unpowered end and to prepare the cold tail on the supply side. Composition: ◊ 1 cable gland union PG16 for infeed into the KBE3A box ◊ 2 Ø 3mm heat-shrinkable sheaths, 100 mm long for the two copper conductors ◊ 2 Ø 12mm heat-shrinkable sheaths, 50 mm long, one at each end KFAN LABELS FOR THE PRESENCE OF A HEATING CABLE ■ Indicate the presence of the heating cable under the insulating coating. ■ To be applied on the coating at intervals of about 5 m; yellow. L03BM1A ON/OFF THERMOSTAT - proportional - P.I.D. at 1 outlet ■ DIN rail mounting ■ 1 probe NTC10K 4  K55A-K65A - SELF-ADJUSTING HEATING CABLES TO MAINTAIN THE TEMPERATURE OF FLUIDS HIGH TEMPERATURE SYSTEMS Ø PIPE MINIMUM ROOM DESIRED INSULATION CABLE INSTALLATION TEMPERATURE TEMPERATURE THICKNESS TYPE mm inches mm 10 1/2 20 3/4 25 1 40 1 1/2 18 °C 40 °C 50 2 75 3 100 4 10 1/2 20 3/4 25 1 40 1 1/2 18 °C 50 °C 50 2 75 3 100 4 10 1/2 20 3/4 25 1 40 1 1/2 18 °C 60 °C 50 2 75 3 100 4 10 1/2 20 3/4 25 1 40 1 1/2 18 °C 70 °C 50 2 75 3 100 4 5
