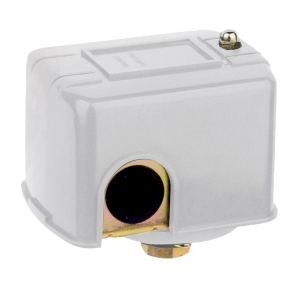

CBM Pressure switch motor control B70A

CBM B70A is a pressure switch motor control for pneumatic and hydraulic systems, rated to 3.5 bar maximum with adjustable differential of +0.8 to +1.8 bar. The IP40-protected unit operates across -15 to 60°C and…

SKU 3G-CBM-03579

Also listed as: FAN 04262 · FAN-04262

Brand

CBM

Item

Pressure switch motor control B70A

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

connection

G 1/4

differential bar

+0.8 to +1.8

max pressure bar

3.5

protection degree

IP40

pressure range bar

0.5 - 7

storage temperature C

-35 to 60

operating temperature C

-15 to 60

Datasheet Content

3G-CBM-03579
Pressure switches for three-phase motors direct control

Pressurecontrolssuitableto controldirectlythe electricmotors of the pumps, compressors, domestic or industrial
autoclaves groups. Suitable as well for fluids (gas or liquids) chemically compatible with the friction diaphragm.




                                                                          86




                                                                                            105                      58




                         Range                Differential        Sensitive element               Connection   Protection
                                     range beginning range ending  max. pressure                     G/14       degree
                           bar                    bar                    bar
B70A	                    0,5 ÷ 7               +0,8      +1,8                   +3,5                 12          IP40
1 Bar = 100Kpa *The differential must be deducted from the range value.




ELECTRICAL FEATURES
Double breaking switch for each pole, contacts in silver alloy.

                                                                               EXAMPLE OF ELECTRICAL WIRING
                                   Contacts are ope-
                                   ning when pressure
                                   increases




                                   In case of single-phase
                                   motors just two poles
                                   are connected




Nominal insulation tension		       Ui 415V~                                               THREE-PHASE          SINGLE-PHASE
Continuous duty nominal current Ith 25A                                                   MOTOR                moTOR
Operating nominal current in 	AC-1          le 20A
Operating nominal current in 	AC-3          le 9A
Powers controlled by the three-phase motors in AC3:
                           220/250V                380/415V~
                           2,2kW/(3HP)       4kW/(5,5HP)




HOMOLOGATION AND STANDARDS
Complies with EN 60947-4-1 standards.
INSTALLATION
Direct installation on the pipe.




OPERATION
Contacts are opening when pressure rises.
Three-pole contact alows the control of single-phase or three-phase motors up to 9A, without contactor.


Pressure differential
                                        Pressure regulation at    8
regulation at
                                        connection: pressure
disconnection                                                     7
                                        value rises on screwing
                                                                  6
                                                                                                           Pressure at disconnection
                                                                  5                                        (contacts opening)
                                                                  4
                                                                  3                                        Pressure at connection
                                                                  2                                        (contacts closing)

                                                                  1


                                                                  * EXAMPLE: Pressure at connection 3,5 bar
                                                                             Pressure at disconnection 4,5 bar


FEATURES
Sensitive element with friction membrane.
Adjustable differential.
Female connection G 1/4.
Cover in shockproof thermoplastic material.
Metallic parts are in stainless steel.
Earth clamp.
Output connections with two cable glands.
Maximum temperature of the controlled fluid: 90°C.
Pressure switch body admissible temperature: -15 ÷ 60°C.
Storage and transport temperature: -35 ÷ 60°C.
Unit weight: 0,39 Kg.
