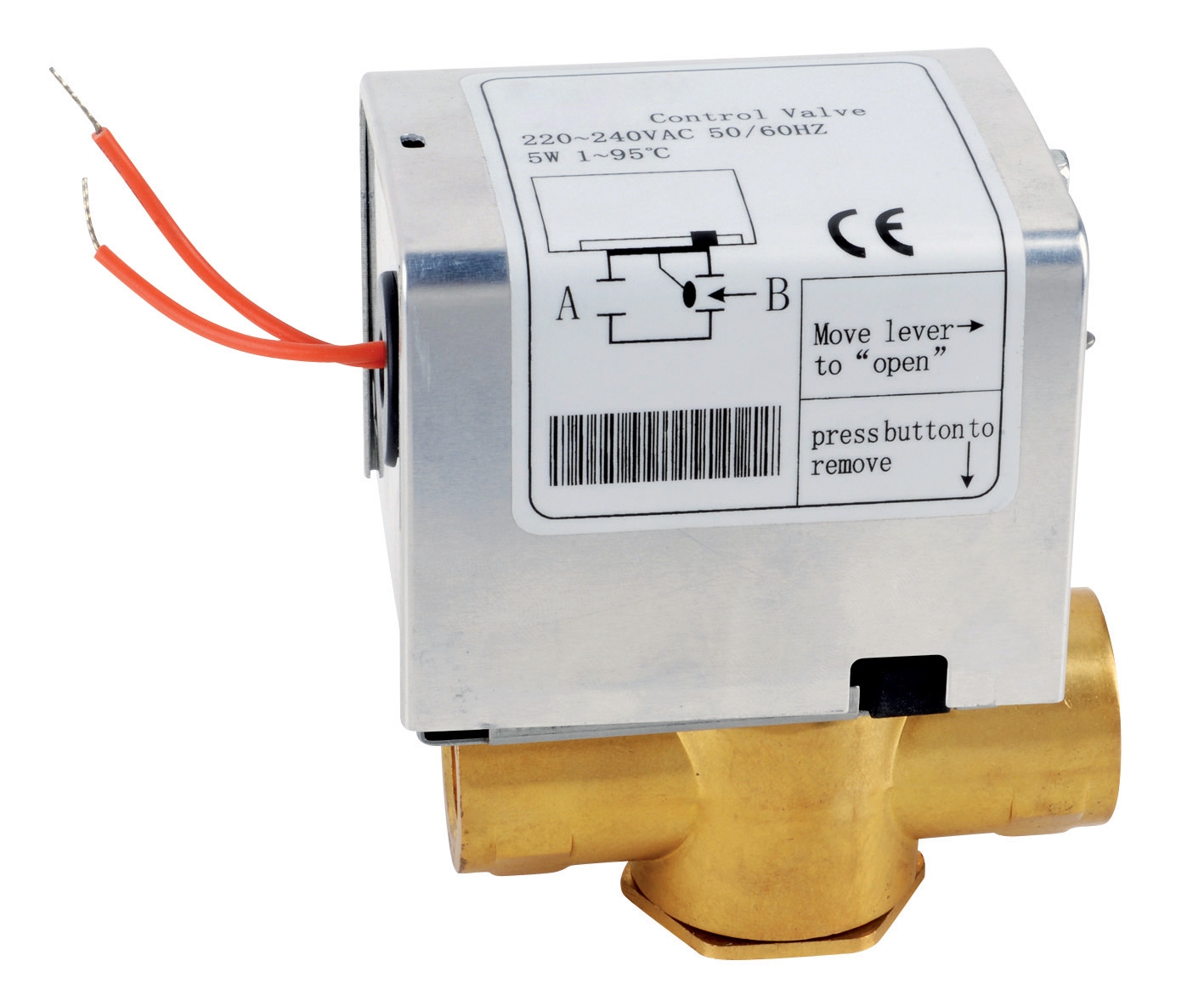

ELV Two-way zone valve 3/4" with auxiliary contact

ELV two-way zone valve (3/4" DN20) regulates chilled and hot water up to 50% glycol in HVAC systems. Features 16 bar maximum pressure, CV value 3.0, and fast response times under 7 seconds closing. Ideal for On-Off…

SKU 3G-CBM-03294

Also listed as: ELV 60012 · ELV-60012

Brand

ELV

Item

Two-way zone valve 3/4" with auxiliary contact

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

ELV

type

2-way zone valve

fluid

Chilled and/or hot water, up to 50% glycol

wiring

2-wire or 5-wire

cv value

3.0

kv value

2.6

connection

DN20

control mode

On-Off with spring return

power supply

AC220V±10%, 50/60Hz

closing time s

<7

opening time s

<18

max pressure bar

16

power consumption w

6.5

closing pressure bar

2

fluid temperature range

0-94°C

ambient temperature range

0-50°C

Datasheet Content

Données Techniques


                    Modèle ELV60002 & 10 ELV60020 & 30 ELV60004 & 12 ELV60022 & 32 ELV60006 & 14 ELV60024 & 34

               Alimentation                                           AC220V±10%, 50/60Hz
           Consommation                                                           6.5W
         Mode de contrôle                                         On-Off(Ouvert/Fermé) Ressort de rappel
                    Temps                                                Ouverture<18s Fermeture<7s
             Type d'action     N.C. 2 Voies    Déviation 3-Way N.C. 2 Voies          Déviation 3-Way N.C. 2 Voies   Déviation 3-Way
            Pression max                                                         16 Bar
                    Fluide                                    Eau glacée et/ou chaude, jusqu'à 50% de Glycol
                  Câblage                                             2 Fils(Rouge, Bleu) or 5 Fils

    Température ambiante                                             0℃-50℃ sans condensation
     Température du fluide                                                       0℃-94℃
                  Matériel                                   Corps : Laiton - Axe : SS(304) - Joint : EPDM
                  DN Size           DN15            DN15                DN20              DN20           DN25           DN25
                  Filetage                                                     BSPP Femelle
         Diamètre raccord           1/2”              1/2”               3/4”              3/4”              1”           1”
           Valeur Kv (Cv)      2.2（2.5）         2.6（3.0）             3.0（3.5）          3.4（4.0）       6.5（7.5）        6.9（8.0）
Pression de fermeture(Bar)            2                2                 1.8               1.8               1.5          1.5




Dimensions




         Modèle               A(mm)           B(mm)              C(mm)

     DN15 2 Voies              70              23                  86
     DN15 3 Voies              70              33                  86
     DN20 2 Voies              79              23                  90

     DN20 3 Voies              79              34                  90

     DN25 2 Voies              88              23                  95
     DN25 3 Voies              88              42                  95
Câblage




              2 Fils (sans contact auxiliaire)                                         5 Fils (avec contact auxiliaire)


Installations
  1. Lisez attentivement ces instructions. Le non-respect de ces instructions pourrait endommager le produit ou
      provoquer une situation dangereuse.
  2. Vérifier les côtes indiquées dans les instructions et sur le produit pour vous assurer que le produit est
      adapté à votre application.
  3. L’installateur doit être un technicien qualifié et expérimenté.
  4. La vanne doit être installée dans un endroit facile à installer et à entretenir.
  5. L’installation doit être horizontale, cela signifie que le moteur doit être vers le haut de façon à éviter l’humidité.
  6. Lors de l'installation de la vanne 2 voies, le côté B doit être l'entrée et le côté A doit être la sortie (A, B inscrit
      sur le bas du corps de vanne).
  7. Lors de l'installation de la vanne 3 voies, l'entrée se trouve en bas de la vanne (aucune inscription sur le
     corps de vanne).
  8. Pour la vanne 3 voies, le côté B est le NC & le côté A est le NO. Installez le tuyau de sortie, le côté B doit
     être connecté au tuyau pricipal et le côté A doit être connecté au tuyau de dérivation, voir FIG.3.




                                                 2 Voies Normalement fermée
                                        3 Voies
Installations
 Actionneur détachable

                   3.Retirer
                   l'actionneur


                                                  1.Mettre en position ouverte


                 2. Pousser le bouton
