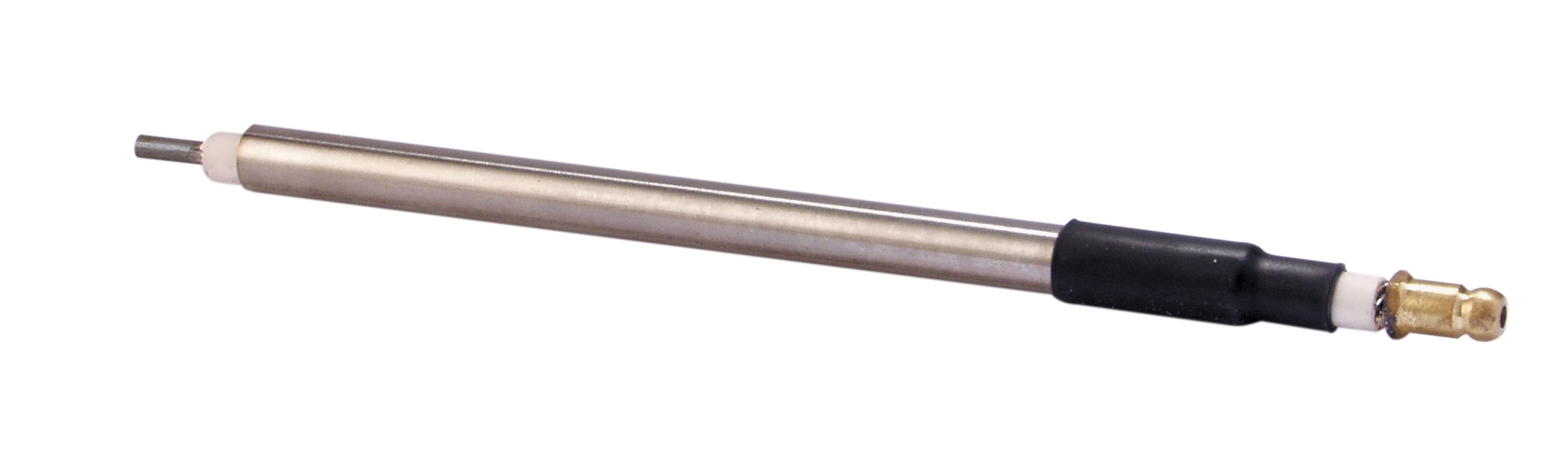

CBM Metal sheath ionization wand electrode 280 mm 12" + 1"

CBM metal sheath ionization wand electrode for static discharge and air ionization applications. Features 12" length with 8 mm sheath diameter and 3 mm electrode diameter. Suited for industrial ESD control and…

SKU 3G-CBM-02758

Also listed as: ELC 14117 · ELC-14117

Brand

CBM

Item

Metal sheath ionization wand electrode 280 mm 12" + 1"

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

type

metal_sheath_ionization_wand

length

12"+1"

sheath diameter

8mm

electrode diameter

3mm

porcelain sheath diameter

6.5mm

Datasheet Content

1   2   3   4    5       6         7        8       9       10       11          12     13       14   15      16      17         18         19

                               Electrode WAND 12"+1" (ELC 14117)

                 Embout de fixation du connecteur

                         Etui de serrage souple pour positionnement du manchon

                               Manchon de serrage inox diamètre           Gaine porcelaine diamètre
                                         8mm ext.                                6.5mm ext.           Electrode diamètre 3mm

            17                                                    280

                                                                   304                                                          25

                                         Titre                                                                                 Date : 22/11/04
                                                             ELECTRODE WAND 12" + 1"
                                                                                                                               Dessiné par : SG

                                                              ELECTRODE IONISATION                          N°:                Page : 1    / 1

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy the CBM ELC14117 ionization wand electrode in the Philippines?

Order from 3G Electric Philippines. We deliver to Manila, Quezon City, and handle all Bureau of Customs documentation and logistics. Lead time on request — contact our team for availability and PHP invoicing.

What are the specifications of the CBM ELC14117 electrode?

The CBM ELC14117 features a 280 mm (12" + 1") length, 8 mm sheath diameter, 3 mm electrode diameter, and 6.5 mm porcelain sheath diameter. Designed for static discharge and air ionization in cleanroom and ESD control applications.

What applications is this ionization wand electrode suited for?

The CBM ELC14117 is ideal for industrial ESD control, cleanroom environments, and static discharge applications. Its metal sheath construction and compact 3 mm electrode diameter enable precise air ionization for contamination-sensitive manufacturing and electronics assembly.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
