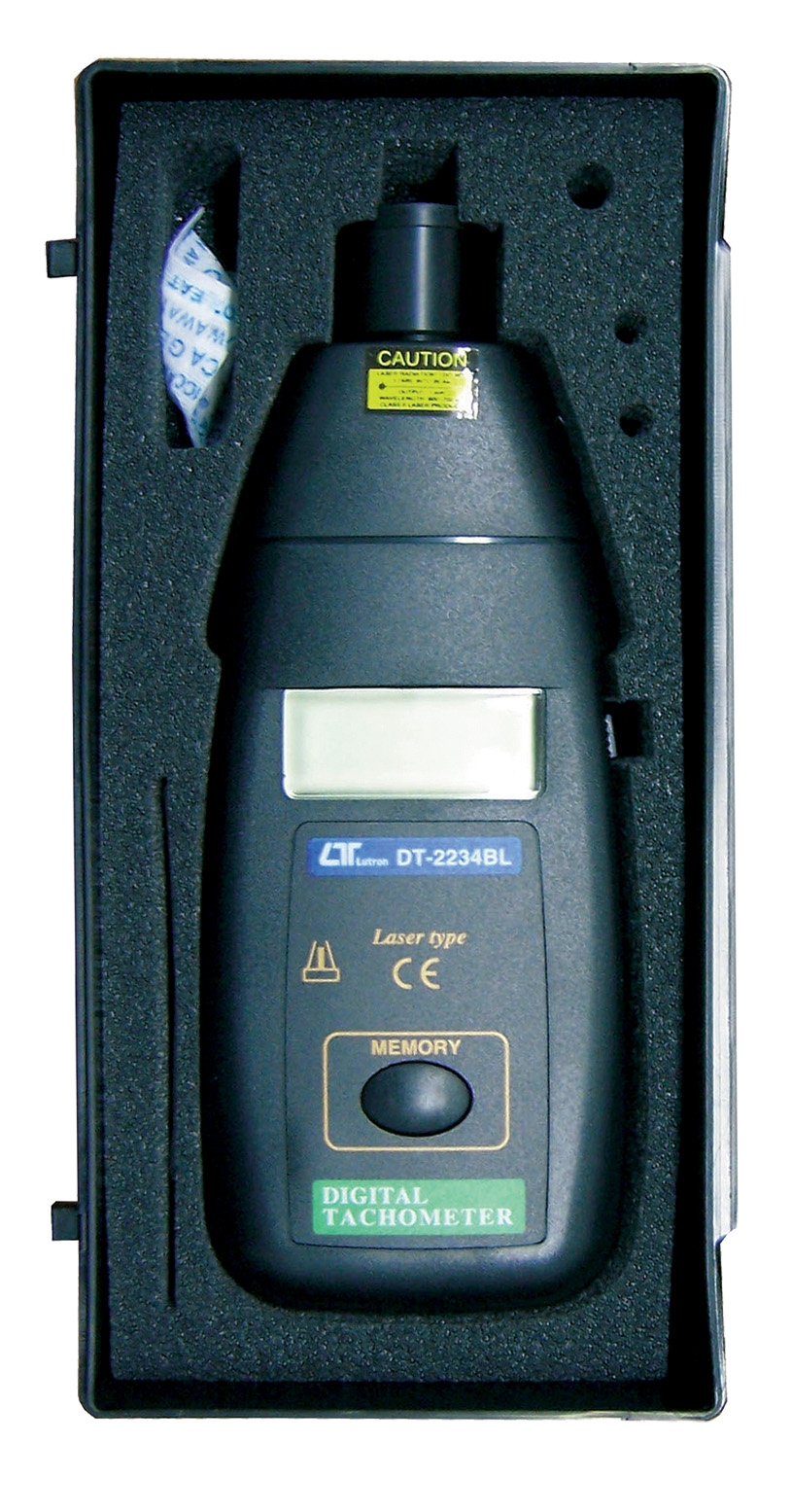

DSZH Laser tachometer 290034006

The DSZH DT-2234BL is a laser tachometer for non-contact RPM measurement in HVAC and industrial applications, delivering ±(0.05% + 1 digit) accuracy across 10 to 99,999 RPM with 0.1 RPM resolution below 1,000 RPM and…

SKU 3G-CBM-01585

Also listed as: COR 40946 · COR-40946

Brand

DSZH

Item

Laser tachometer 290034006

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

DSZH

model

DT-2234BL

battery

4 x 1.5V AA

accuracy

±(0.05% + 1 digit)

resolution

0.1 RPM (<1,000 RPM)

laser power

<1 mW

measurement range

10 to 99,999 RPM

power consumption

~20 mA DC

detecting distance

50-2,000 mm

Datasheet Content

LASER PHOTO TACHOMETER
Model : DT-2234BL   ISO-9001, CE, IEC1010
                Laser Photo TACHOMETER
                Model : DT-2234BL

                                  FEATURES
* Laser light detecting source, long measuring range up to 2 meters, it is
  useful in the RPM measurement application where the machine would
  be a risk to the operator or close access is difficult or not possible.
* Wide measuring range from 10 to 100,000 RPM, 0.1 RPM resolution for
  the measured value < 1000 RPM.
* Microprocessor based circuit, crystal time base, high precision with
  0.05% accuracy.
* High visible LCD display gives RPM reading exactly with no guessing or
  errors & saves battery energy.
* Memory with recall function, the last value, max., value, min. value will
  be stored into the memory automatically.
* The use of durable, long lasting components, including a strong, light
  weight ABS plastic housing, assures almost maintenance free
  performance for many years.

                                        SPECIFICATIONS
Display                             5 digits, 10 mm ( 0.4" ) LCD ,
                                    with function annunciation.
Measurement & Range                 10 to 99,999 RPM.
Resolution                           0.1 RPM ( <1,000 RPM).
                                    1 RPM ( 1,000 RPM ).
Accuracy                            ± ( 0.05% + 1 digit ).
Detecting                           50 - 2,000 mm typically.
distance                            * Spec. of detecting distance are that under the size of
                                      reflecting tape is 10 mm square & the measuring RPM
                                      value is 1,800 PPM. The max. detecting distance may
                                      change under different environment, different reflecting
                                      tape or the measuring RPM beyond 1800 PRM.
Laser light                         * Less than 1 mW.
source                              * Class 2 laser red diode.
                                       Wave length is 645 nm approximately.
Time base                           Quartz crystal, 4.194 MHz.
Circuit                             Exclusive one-chip of microcomputer
                                    LSI circuit.
Operating Temp.                     0 - 50 ℃ ( 32 - 122 ℉).
Operating Humidity                  Less than 80% R.H.
Memory                              Last / Max. / Min. ... value.
Battery                             4 x 1.5V AA ( UM-3 ) battery.
Power Consumption                   Approx. DC 20 mA.
Size                                190 x 72 x 37 mm
                                    ( 7.5 x 2.8 x 1.5 inch )
Weight                              250g ( 0.55 LB )/including battery.
Accessories                         Carrying case.............................................. 1 PC
Included                            Reflecting tape marks
                                    ( 600 mm )................................................. 1 PC
                                    Operation manual........................................ 1 PC
* Appearance and specifications listed in this brochure are subject to change without notice.   0601-DT2234BL
