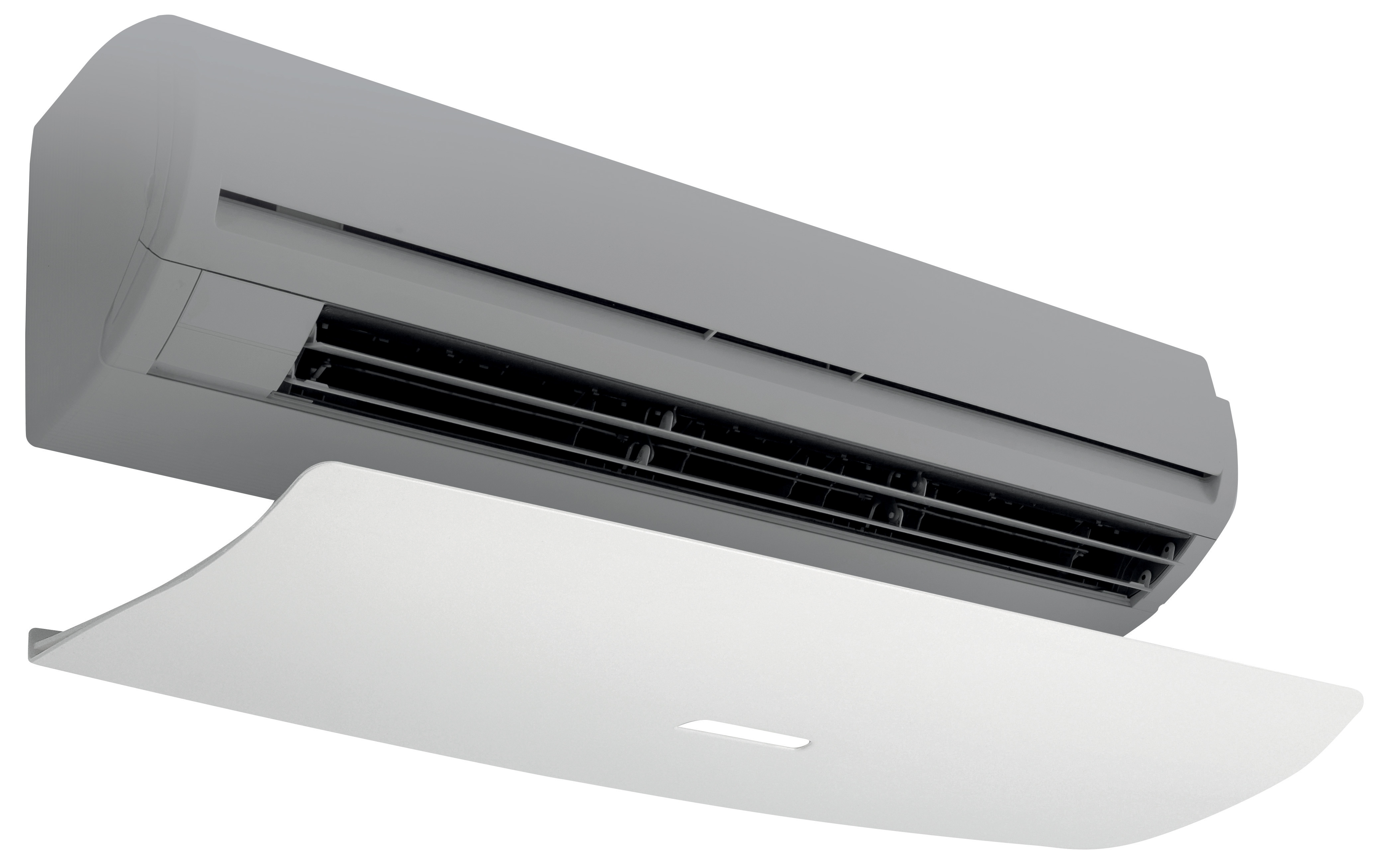

CBM Inner deflector L=690 mm

CBM inner deflector for air conditioning systems, 690 mm length with polypropylene construction reinforced by 30% micro glass beads. UV-stabilized design operates from -10°C to +50°C, suitable for HVAC applications…

SKU 3G-CBM-01038

Also listed as: CLI 04704 · CLI-04704

Brand

CBM

Item

Inner deflector L=690 mm

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

material

PP with 30% micro glass beads, UV stabilized

dimensions

L 690 X 45

temperature range

-10°C to +50°C

Datasheet Content

PRODUCT SPECIFICATION

                                                Article code: 3G-CBM-01038

                                                Description:
                                                Air deflector for internal AC unit

APPLICATION

Air deflectors are essential accessories to deflect internal air flow when necessary. Made of white
plastic, they are easy and quick to install thanks to the provided screws. They are supplied with
an insulation plate to avoid the moisture condensation on them.

MATERIAL

PP with 30% micro glass beads, UV stabilized:
ADVISED RANGE OF TEMPERATURES

Minimum -10°C to Maximum +50°C

COLOURS

White

CHARACTERISTICS

   -    Quick and easy installation.
   -    Screw (enclosed) hidden after installation.
   -    Anti-condensation insolation slab enclosed.
   -    Remove unpleasant air flow.

USE

Like all cases where you need to hole wall, please verify that NO ELECTRICAL WIRE AND OTHER
PIPES pass into your work area.

Take out from pack air deflector, anti-condensation slab, screw and dowels

Place air deflector on wall on exactly final position and draw centre of two holes using air
deflector as reference; Suggested distance from air conditioner and air deflector is 4,5cm (see
below picture);

Create holes, insert dowels and screw in fixing air deflector on final position
Paste all bi-adhesive found into pack on six squares inside air deflector (see below picture)

Place anti-condensation slab on internal side of air deflector where you before position bi-
adhesive.

Lightly push to better fit anti-condensation slab on air deflector.

Downward position of your air conditioner fins and… enjoy fresh air!

MEASUREMENTS

All measurements in mm
