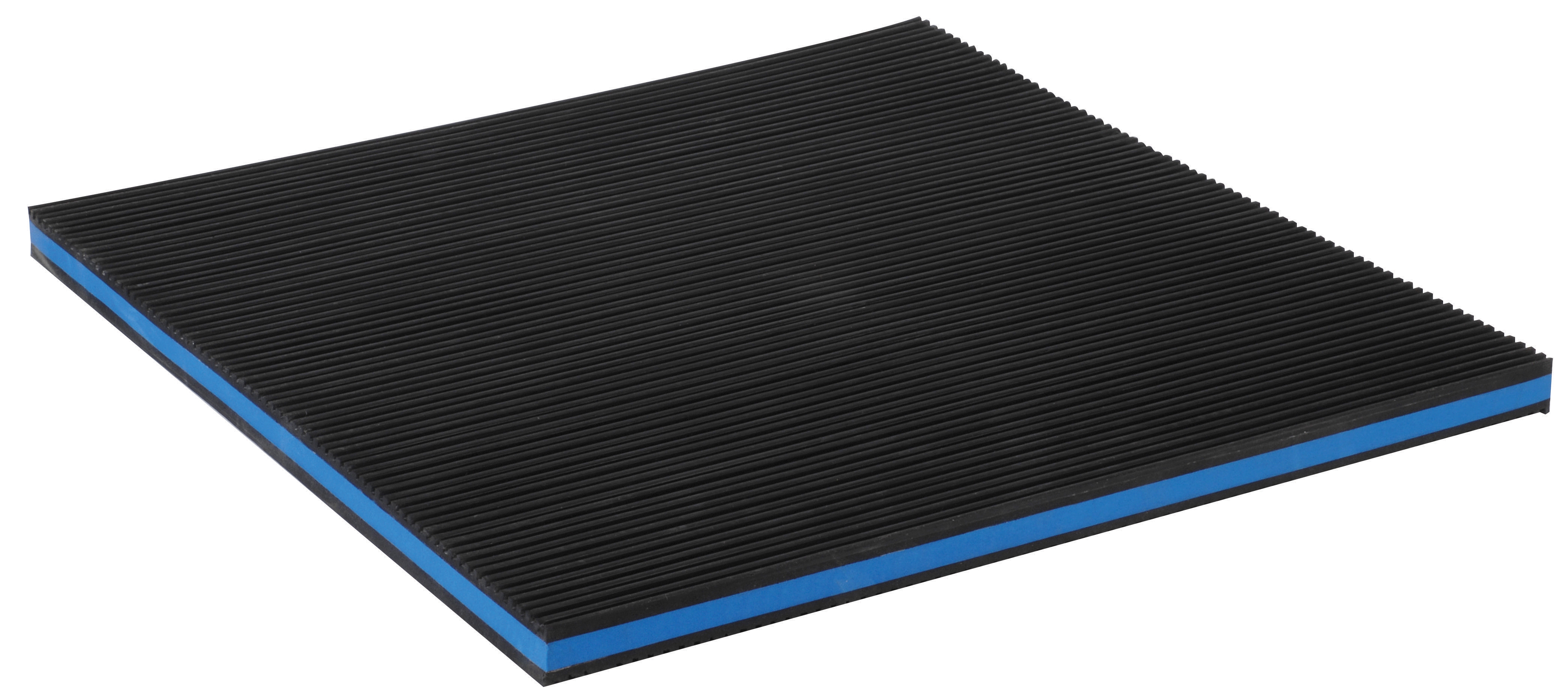

CBM EVA anti-vibration support 46x46x2

CBM EVA anti-vibration support pad for HVAC systems features a 460 × 460 × 22 mm footprint with EVA foam core and rubber surface, rated to 3.5 kg/cm² safe working load. Isolates equipment vibration in air…

SKU 3G-CBM-00917

Also listed as: CLI 04494 · CLI-04494

Brand

CBM

Item

EVA anti-vibration support 46x46x2

Local availability & support — the Philippines

Delivery: 5–8 business days door-to-door; Bureau of Customs clearance typically 2–4 business days.
Payment: Invoicing in PHP or USD. Bank transfer and corporate PO accepted.
Ships to: Manila, Quezon City, Cebu, Davao, Batangas

Technical Specifications

CBM

type

anti-vibration pad

material

EVA foam core with rubber surface

dimensions

460 X 460 X 22 mm

safe working load

3.5 kg/cm²

Datasheet Content

EVA™ Pads




                                                                                                  EVA™
                                                                                                PARTNERS




                                                                                               Pads


EVA™ anti-vibration pads are designed to effectively eliminate vibrations and reduce noise
levels from appliances such as compressors, condensing units and air source heat pumps.
Out-performing cork and rubber by 3:1, the EVA Pad has a special composite foam centre
and is resistant to most oils and chemicals.

           Features                                                                            Related Products
• Safe working load – 3.5kg per cm²         • RUBBER Used as the anti-vibration                Ultralite® Slabs
• Special composite foam centre               surface on the top/bottom of
                                              the pad. This rubber is a styrene
•
                                              butadiene rubber with aggressive
                                              tensile strength and characteristics                The Package
                                              suitable for the application
                                                                                                • 1 x EVA™ Mounting Pad •
                                            • EVA™ Used as the core vibration
                                                dampening material. This EVA
                                                material is a polymetric foam
                                                material. It is constructed out of a
                                                blend of ethyl vinyl acetate and
                                                other enhancements


   Part Code                       Description                           Length        Width               Depth    Weight
     CLI04490          EVA Anti-Vibration Mounting Pad – 50mm            50mm          50mm                20mm     0.036kg
     CLI04491          EVA Anti-Vibration Mounting Pad – 80mm            80mm          80mm                20mm     0.075kg
     CLI04492         EVA Anti-Vibration Mounting Pad – 100mm            100mm         100mm               20mm     0.146kg
     CLI04493         EVA Anti-Vibration Mounting Pad – 150mm            150mm         150mm               20mm     0.342kg
     3G-CBM-00917         EVA Anti-Vibration Mounting Pad – 460mm            460mm         460mm               20mm     2.97kg

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

Where can I buy CBM CLI04494 anti-vibration pads in the Philippines?

Order CBM CLI04494 anti-vibration supports directly from 3G Electric Philippines. We deliver to Manila, Quezon City, and nationwide. 3G Electric handles all Bureau of Customs documentation, logistics, and PHP invoicing for seamless procurement.

What is the lead time for CBM anti-vibration support pads?

Lead times vary by order volume and origin availability. Contact 3G Electric Philippines for a specific delivery schedule. We manage the full import process, including customs clearance, so you receive final delivery timelines upfront.

What is the safe working load rating for the CBM CLI04494 anti-vibration pad?

The CBM CLI04494 is rated to 3.5 kg/cm² safe working load. The pad measures 460×460×22 mm with an EVA foam core and rubber surface, ideal for isolating vibration in HVAC and air conditioning installations.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
