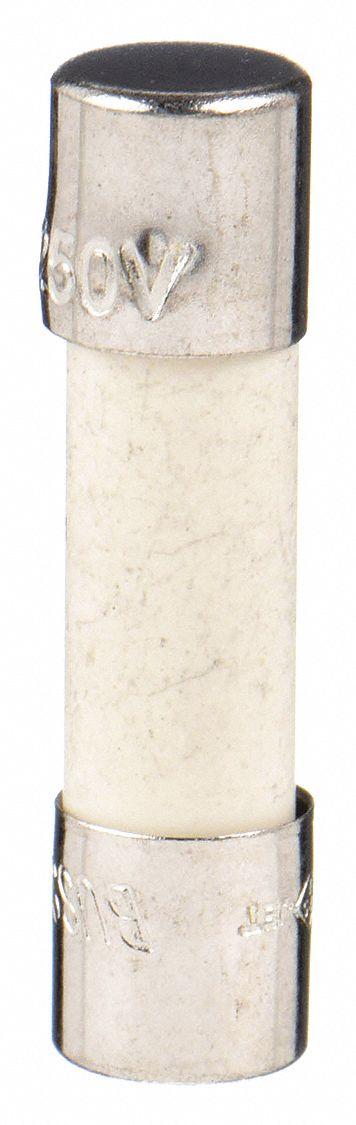

BUSSMANN Fuse: S505 Series, Time-Delay, 8 A, 250 V AC, Non-Indicating - Time-Delay Cylindrical Fuses
BUSSMANNTime-Delay Cylindrical Fuses

BUSSMANN Fuse: S505 Series, Time-Delay, 8 A, 250 V AC, Non-Indicating

The BUSSMANN S505 Series is a time-delay cylindrical fuse rated at 8 A and 250 V AC, with a 5 mm x 20 mm form factor. This non-indicating fuse is identified by manufacturer part number S505-8-R and is equivalent to…

SKU 3G-OTH-26550

Brand
BUSSMANN
Item
Fuse: S505 Series, Time-Delay, 8 A, 250 V AC, Non-Indicating
Category
Time-Delay Cylindrical Fuses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BUSSMANN
Manufacturer Part Number
S505-8-R
Series
S505
Type
Time-Delay, 8 A, Non-Indicating, 5 mm x 20 mm
AC
250 V
Equivalent Fuse Series
S505, 477, & GSF
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BUSSMANN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BUSSMANN S505 Series is a time-delay cylindrical fuse rated at 8 A and 250 V AC, with a 5 mm x 20 mm form factor. This non-indicating fuse is identified by manufacturer part number S505-8-R and is equivalent to the S505, 477, and GSF series.

Used in

Common applications for BUSSMANN
Industrial motor control centers — BUSSMANN LPT series Class T time-delay fuses for branch circuit protection
Semiconductor protection in variable frequency drives — BUSSMANN FWA series fast-acting bolt-on fuses rated 150 V AC/DC
Automotive auxiliary circuit protection — BUSSMANN CB222 series Type II circuit breakers in 12 V DC systems
Control panel overcurrent protection — BUSSMANN FNA series midget time-delay indicating fuses for instrumentation
Main feeder protection in power distribution — BUSSMANN KLU series Class L time-delay bolt-on fuses up to 650 A
Fuse replacement in existing panels — BUSSMANN S-8301-1-R fuse block accepting 3AG and other glass/ceramic fuses

BUSSMANN Products

3G Electric supplies BUSSMANN time-delay cylindrical fuses. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
