BURNDY Upper and Lower Crimping Die Set: 6 AWG to 750 kcmil, 8 Sizes - Burndy Replacement Crimping Dies
BURNDYBurndy Replacement Crimping Dies

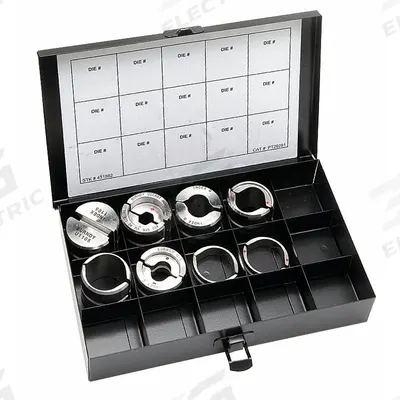

BURNDY Upper and Lower Crimping Die Set: 6 AWG to 750 kcmil, 8 Sizes

The BURNDY Upper and Lower Crimping Die Set (MPN UDIEKITHYGRD) is a replacement crimping die set for use with BURNDY PAT46 tools. It accommodates copper conductors from 6 AWG to 750 kcmil and includes 8 sizes, with a…

SKU 3G-OTH-252895

Brand
BURNDY
Item
Upper and Lower Crimping Die Set: 6 AWG to 750 kcmil, 8 Sizes
Category
Burndy Replacement Crimping Dies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BURNDY
Manufacturer Part Number
UDIEKITHYGRD
Type
12 ton Max Crimping Force
Sizes
8
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BURNDY Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BURNDY Upper and Lower Crimping Die Set (MPN UDIEKITHYGRD) is a replacement crimping die set for use with BURNDY PAT46 tools. It accommodates copper conductors from 6 AWG to 750 kcmil and includes 8 sizes, with a maximum crimping force of 12 tons. The set is designed for YGS applications.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the BURNDY UDIEKITHYGRD crimping die set used for?

The BURNDY UDIEKITHYGRD upper and lower crimping die set is used with BURNDY PAT46 tools to crimp copper conductors from 6 AWG to 750 kcmil. It is designed for YGS applications and delivers up to 12 tons of crimping force across 8 die sizes.

What are the specifications of the BURNDY UDIEKITHYGRD die set?

The BURNDY UDIEKITHYGRD die set includes 8 sizes for copper conductors ranging from 6 AWG to 750 kcmil. It has a maximum crimping force of 12 tons and is compatible with BURNDY PAT46 tools. The set is designed for YGS applications.

Where to buy BURNDY UDIEKITHYGRD crimping dies worldwide?

3G Electric supplies the BURNDY UDIEKITHYGRD crimping die set worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver this replacement die set to your facility, no matter the location.

How to select the correct BURNDY crimping die for a PAT46 tool?

To select the correct BURNDY crimping die for a PAT46 tool, match the die set to your conductor material and size. The UDIEKITHYGRD set is designed for copper conductors from 6 AWG to 750 kcmil. Always verify compatibility with your tool model and application requirements.

Used in

Common applications for BURNDY
Power distribution panelboards — BURNDY KA31U mechanical panelboard lugs for 6 AWG to 350 kcmil copper conductors
Grounding electrode systems — BURNDY C5 bronze pipe ground clamps for bonding water pipes to grounding conductors
Transformer connections — BURNDY QA1CB straight mechanical lugs for 4 AWG to 1 AWG copper wire terminations
Industrial control cabinets — BURNDY KLU25 offset-tongue lugs for 14 AWG to 10 AWG wire connections on #6 studs
Multitap splicing in junction boxes — BURNDY BIBD60010 aluminum multitap connector for 4 AWG to 600 kcmil conductors
Crimping copper lugs in switchgear — BURNDY UO replacement dies with Y35 head for 6 to 2 AWG copper lugs

BURNDY Products

3G Electric supplies BURNDY burndy replacement crimping dies. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
