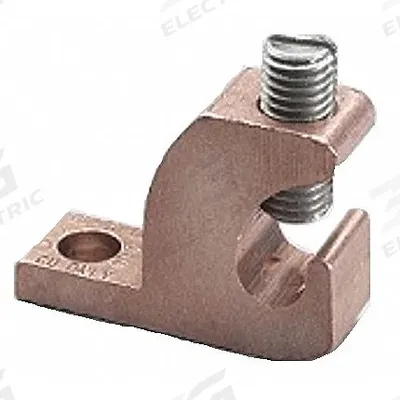

BURNDY Mechanical Connectors: 14 AWG – 4 AWG Wire Sizes, #10 Stud Size
The BURNDY CL501TN is a tin-plated copper lay-in lug designed for copper wire. It accommodates stranded wire sizes from 14 AWG to 4 AWG and features a #10 stud size.
SKU 3G-OTH-18454
Need installation or engineering help?
Ask a question
Product Description
The BURNDY CL501TN is a tin-plated copper lay-in lug designed for copper wire. It accommodates stranded wire sizes from 14 AWG to 4 AWG and features a #10 stud size.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the BURNDY CL501TN mechanical connector used for?
The BURNDY CL501TN is a tin-plated copper lay-in lug used to terminate or splice copper wire in electrical panels, switchgear, and industrial control cabinets. It accommodates stranded copper wire from 14 AWG to 4 AWG with a #10 stud size, providing a reliable, corrosion-resistant connection.
What are the specifications of the BURNDY CL501TN?
The BURNDY CL501TN is a tin-plated copper lay-in lug for copper wire. It accepts stranded copper wire sizes from 14 AWG minimum to 4 AWG maximum, with a #10 stud size. The lug body is tin-plated copper for corrosion resistance. The manufacturer part number is CL501TN.
Where to buy BURNDY CL501TN worldwide?
3G Electric supplies the BURNDY CL501TN tin-plated copper lay-in lug to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this connector.
How to install a BURNDY CL501TN lay-in lug?
To install the BURNDY CL501TN, strip the copper wire to the recommended length, insert it into the lay-in channel, and tighten the set screw to the torque specified by BURNDY for 4 AWG to 14 AWG wire. Ensure the lug is seated flat on the #10 stud and the connection is secure.
Used in
Common applications for BURNDYBURNDY Products
3G Electric supplies BURNDY lay-in lugs. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
