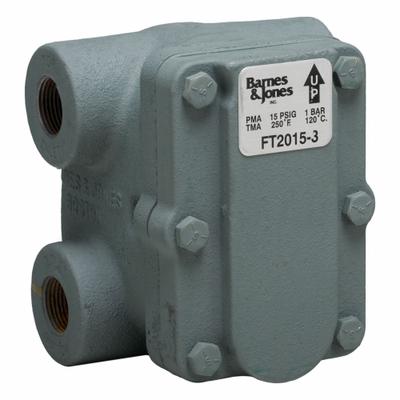

BARNES & JONES Steam Trap: Cast Iron, 3/4 in FNPT, 1,129 lb/hr, 15 psig Max., 345°F Max. - Cast Iron H-Pattern Float & Thermostatic Steam Traps
BARNES & JONESCast Iron H-Pattern Float & Thermostatic Steam Traps

BARNES & JONES Steam Trap: Cast Iron, 3/4 in FNPT, 1,129 lb/hr, 15 psig Max., 345°F Max.

The BARNES & JONES Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap, model FT2015-3 from Manufacturer Series A. It features a 3/4 in FNPT connection, a stainless steel float, and is designed for…

SKU 3G-OTH-71402

Brand
BARNES & JONES
Item
Steam Trap: Cast Iron, 3/4 in FNPT, 1,129 lb/hr, 15 psig Max., 345°F Max.
Category
Cast Iron H-Pattern Float & Thermostatic Steam Traps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BARNES & JONES
Manufacturer Part Number
FT2015-3
Type
1,129 lb/hr, 15 psig Max., H Pattern
FNPT
3/4 in
Max.
345°F
Float Material
Stainless Steel
Manufacturer Series
A
Installation Orientation
Horizontal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BARNES & JONES Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BARNES & JONES Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap, model FT2015-3 from Manufacturer Series A. It features a 3/4 in FNPT connection, a stainless steel float, and is designed for horizontal installation. The trap has a maximum capacity of 1,129 lb/hr at 15 psig and a maximum temperature of 345°F.

Used in

Common applications for BARNES & JONES
Steam heating systems in commercial buildings — Barnes & Jones FT15-B6 repair kit for Armstrong 15-B6 traps
Process steam lines in industrial plants — Barnes & Jones FT30-B8 repair kit for Armstrong 30-B8 traps
Condensate return systems in power generation — Barnes & Jones FT015H repair kit for Hoffman FT015H traps
HVAC steam distribution in hospitals — Barnes & Jones FT15-B2 repair kit for Armstrong 15-B2 traps
Food processing steam systems — Barnes & Jones FT15-B4 repair kit for Armstrong 15-B4 traps
Chemical plant steam tracing — Barnes & Jones FT30-B6 repair kit for Armstrong 30-B6 traps

BARNES & JONES Products

3G Electric supplies BARNES & JONES cast iron h-pattern float & thermostatic steam traps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
