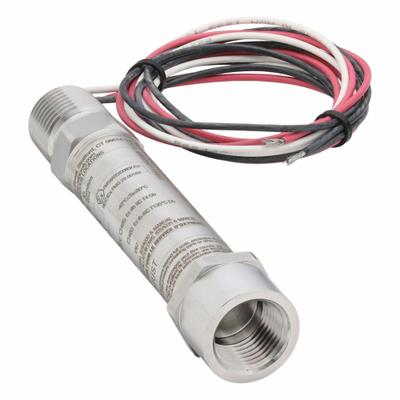

ASHCROFT Pressure Transmitter - Explosion-Proof with Conduit Connection & Wire Leads
ASHCROFTExplosion-Proof with Conduit Connection & Wire Leads

ASHCROFT Pressure Transmitter

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NF0415CFX03F3000#) is an explosion-proof transmitter with a conduit connection and wire leads, rated for 3,000 psi gauge pressure. It features a stainless steel…

SKU 3G-OTH-175489

Brand
ASHCROFT
Item
Pressure Transmitter
Category
Explosion-Proof with Conduit Connection & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
E2FA5NF0415CFX03F3000#
Series
E2F
Output
1 to 5V DC
Accuracy
±0.50%
IP Rating
IP66
NEMA Rating
4X
Overpressure
1.9x
Safety Rating
Class III, Div 1
Burst Pressure
5x
Housing Material
Stainless Steel
Intrinsically Safe
Not Specified Intrinsically Safe
Electrical Connection
1/2 in NPT Conduit with Cable
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
No NIST-Traceable Calibration Certificate Included
Resistance Properties - TS Only
Shock Resistant
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NF0415CFX03F3000#) is an explosion-proof transmitter with a conduit connection and wire leads, rated for 3,000 psi gauge pressure. It features a stainless steel housing, IP66 and NEMA 4X ratings, a 1 to 5V DC output, and a 1/2 in NPT conduit electrical connection with cable. The unit offers ±0.50% accuracy, 1.9x overpressure and 5x burst pressure protection, and is shock resistant, though it is not specified as intrinsically safe and does not include a NIST-traceable calibration certificate.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT explosion-proof with conduit connection & wire leads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
