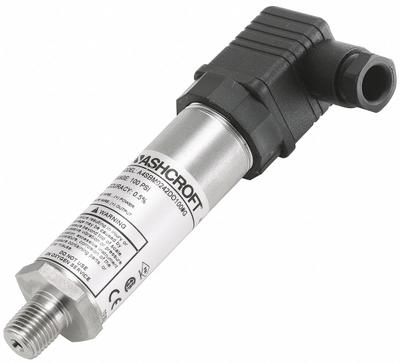

ASHCROFT Pressure Transmitter: 0 psi to 500 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A - Intrinsically Safe with DIN 43650 Form A Connector
ASHCROFTIntrinsically Safe with DIN 43650 Form A Connector

ASHCROFT Pressure Transmitter: 0 psi to 500 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A

The ASHCROFT A4 Series Pressure Transmitter (0 psi to 500 psi) is an intrinsically safe-rated transmitter with a 4 to 20mA DC output and a Hirschmann® Form A DIN 43650-A connector. It features a stainless steel…

SKU 3G-OTH-176583

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 500 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A
Category
Intrinsically Safe with DIN 43650 Form A Connector
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
A4SBM0242D0500#
Series
A4
Type
Hirschmann® Form A DIN 43650-A, IP65 /4X
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.50% of Full Scale
IP Rating
IP65
NEMA Rating
4X
Overpressure
1.2x Range
Product Type
Intrinsically Safe-Rated Transmitter
Safety Rating
Class III, Div 1 and 2
Burst Pressure
1.5x Range
Housing Material
Stainless Steel
Intrinsically Safe
Intrinsically Safe
Electrical Connection
Hirschmann® Form A DIN 43650-A
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT A4 Series Pressure Transmitter (0 psi to 500 psi) is an intrinsically safe-rated transmitter with a 4 to 20mA DC output and a Hirschmann® Form A DIN 43650-A connector. It features a stainless steel housing, IP65 and NEMA 4X ratings, and an accuracy of ±0.50% of Full Scale. The gauge pressure transmitter includes an NPT process connection, with overpressure of 1.2x Range and burst pressure of 1.5x Range, and comes with a NIST-Traceable Calibration Certificate.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT intrinsically safe with din 43650 form a connector. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
