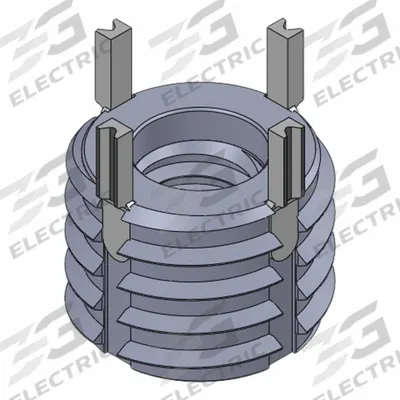

APPROVED VENDOR Key Locking Insert: Heavy Wall, 4 Keys, 9/16"-12 Int Thrd Sz, 13/16"-16 Ext Thrd Sz - Mil. Spec. Key-Locking Inserts
APPROVED VENDORMil. Spec. Key-Locking Inserts

APPROVED VENDOR Key Locking Insert: Heavy Wall, 4 Keys, 9/16"-12 Int Thrd Sz, 13/16"-16 Ext Thrd Sz

The APPROVED VENDOR Key Locking Insert is a heavy-wall, mil. spec. insert (MS51830-102L) with 4 keys, 9/16"-12 internal thread size, and 13/16"-16 external thread size. Supplied in a plain finish, 10-pack, this 18-8…

SKU 3G-OTH-531661

Brand
APPROVED VENDOR
Item
Key Locking Insert: Heavy Wall, 4 Keys, 9/16"-12 Int Thrd Sz, 13/16"-16 Ext Thrd Sz
Category
Mil. Spec. Key-Locking Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
217-077307
Type
Plain, 10 PK
Keys
4
Wall Type
Heavy Wall
Ext Thrd Sz
13/16"-16
Finish Type
Plain
Int Thrd Sz
9/16"-12
Thread Type
Coarse
Industry Standards
MS51830-102L
Compatible Tap Size
13/16"-16
External Thread Fit
2A
Internal Thread Fit
3B
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Key Locking Insert is a heavy-wall, mil. spec. insert (MS51830-102L) with 4 keys, 9/16"-12 internal thread size, and 13/16"-16 external thread size. Supplied in a plain finish, 10-pack, this 18-8 stainless steel inch-system insert features 2A external and 3B internal thread fits, compatible with a 13/16"-16 tap.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a key locking insert used for?

A key locking insert is used to repair or reinforce threaded holes in metal assemblies, particularly in aerospace, defense, and industrial equipment. The APPROVED VENDOR heavy-wall insert (MS51830-102L) provides a permanent, high-strength thread in soft materials, with four keys locking it in place to prevent rotation under vibration.

What are the specifications of the APPROVED VENDOR key locking insert?

This heavy-wall insert has a 9/16"-12 internal thread and 13/16"-16 external thread, with 2A external and 3B internal thread fits. It is made of 18-8 stainless steel, plain finish, and comes in a 10-pack. It meets mil. spec. MS51830-102L and is compatible with a 13/16"-16 tap.

Where to buy APPROVED VENDOR key locking inserts worldwide?

3G Electric supplies the APPROVED VENDOR key locking insert (MPN 217-077307) to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this mil. spec. insert.

How to install a key locking insert?

To install, tap the hole to the specified compatible tap size (13/16"-16 for this insert), then screw the insert into the tapped hole using a driving tool. The four keys are then set into the parent material using a key setting tool to lock the insert in place. Follow standard mil. spec. installation procedures for best results.
