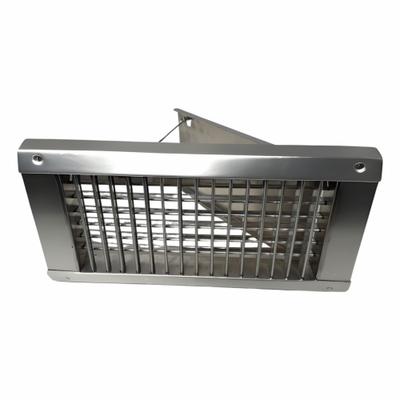

AMERICAN LOUVER Grille: Louvered Grille, Silver, Mill, Aluminum, 7 1/4 in H, 13 1/8 in W - Surface-Mount Grilles
AMERICAN LOUVERSurface-Mount Grilles

AMERICAN LOUVER Grille: Louvered Grille, Silver, Mill, Aluminum, 7 1/4 in H, 13 1/8 in W

The AMERICAN LOUVER Grille: Louvered Grille (SKU 401JA9, MPN SP-10X6-M) is a surface-mount grille designed for exposed duct mounting. This silver, mill-finish aluminum unit measures 7 1/4 inches in height, 13 1/8…

SKU 3G-OTH-77993

Brand
AMERICAN LOUVER
Item
Grille: Louvered Grille, Silver, Mill, Aluminum, 7 1/4 in H, 13 1/8 in W
Category
Surface-Mount Grilles
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

AMERICAN LOUVER
Manufacturer Part Number
SP-10X6-M
Type
Silver, Mill, Aluminum, 13 1/8 in W
D
2 in
H
7 1/4 in
Bar Spacing
3/4 in
Mounting Location
Exposed Duct
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

AMERICAN LOUVER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The AMERICAN LOUVER Grille: Louvered Grille (SKU 401JA9, MPN SP-10X6-M) is a surface-mount grille designed for exposed duct mounting. This silver, mill-finish aluminum unit measures 7 1/4 inches in height, 13 1/8 inches in width, and 2 inches in depth, with a 3/4-inch bar spacing.

Used in

Common applications for AMERICAN LOUVER
Commercial office HVAC — American Louver lay-in eggcrate grilles (STR-ERFG-14W-FR) for ceiling return air systems
Industrial facility ventilation — American Louver surface-mount louvered grilles (SP-10X6-M) on exposed ductwork
Retail space air distribution — American Louver square cone diffusers (STR-C-12W-FR) for supply air in suspended ceilings
Hospital cleanroom airflow — American Louver perforated diffusers (STR-PERF-2214-5PK) for laminar flow ceilings
School building replacement — American Louver square plaque diffusers (STR-PQ-14W-FR) for standard grid ceiling retrofits

AMERICAN LOUVER Products

3G Electric supplies AMERICAN LOUVER surface-mount grilles. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
