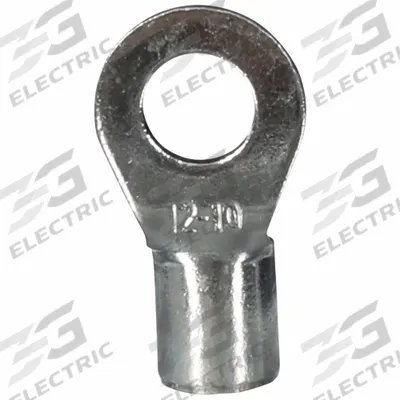

3M Ring Terminal: Bare, #10 Stud Size, 12 AWG to 10 AWG Wire Sizes, 1,000 V
The 3M Ring Terminal: Bare (MPN M10-10RX) is a non-insulated ring terminal designed for #10 stud size, accommodating 12 AWG to 10 AWG wire sizes with a 1,000 V rating. It features a brazed barrel and seam…
SKU 3G-OTH-19019
Need installation or engineering help?
Ask a question
Product Description
The 3M Ring Terminal: Bare (MPN M10-10RX) is a non-insulated ring terminal designed for #10 stud size, accommodating 12 AWG to 10 AWG wire sizes with a 1,000 V rating. It features a brazed barrel and seam construction for secure connections. 3G Electric interprets demand and supplies this terminal across 14 industrial departments, with specialist depth in electrical components.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is a 3M M10-10RX ring terminal used for?
The 3M M10-10RX is a non-insulated ring terminal used to terminate 12 AWG to 10 AWG wires onto a #10 stud. It is common in industrial control panels, power distribution, and electrical equipment where a reliable, high-voltage (1,000 V) connection is required.
What are the specifications of the 3M M10-10RX ring terminal?
The 3M M10-10RX is a bare, non-insulated ring terminal with a #10 stud size, accepting 12 AWG to 10 AWG wire. It features a brazed barrel and seam for strength, rated for 1,000 V. The manufacturer part number is M10-10RX.
Where to buy 3M M10-10RX ring terminals worldwide?
3G Electric supplies the 3M M10-10RX ring terminal to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this and other 3M electrical termination products.
How to install a 3M M10-10RX non-insulated ring terminal?
Strip the wire to the barrel length, insert the conductor fully into the brazed barrel, then crimp using a tool matched to 12–10 AWG. For bare terminals like the M10-10RX, ensure the crimp is tight and the ring seats flat against the stud for a secure, low-resistance connection.
Used in
Common applications for 3M3M Products
3G Electric supplies 3M non-insulated ring terminals. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
